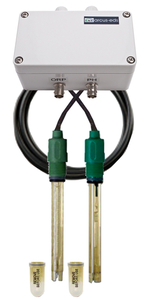

Kit formado por controlador y sonda para el registro y control de la calidad del agua: ph-value y valores redox tanto en interior como en exterior (humedad) (ip65).
Aplicación: monitorización de la calidad del agua en acuarios, piscinas, lagos y sistemas de servicio de agua, el sensor se fija a la pared con dos tornillos.
Kit formado por controlador y sonda para el registro y control de la calidad del agua: ph-value y valores redox tanto en interior como en exterior (humedad) (ip65).
Aplicación: monitorización de la calidad del agua en acuarios, piscinas, lagos y sistemas de servicio de agua, el sensor se fija a la pared con dos tornillos.
The KNX Sensor Water Quality SK08-WAQ is a sensor/controller from the series S8 used for recording and controlling water parameters: phvalue,redox potential and water temperature. The sensor/controller has two high impedance BNC inputs for connecting a single-rod measuring cell for pH value and redox potential. The inputs are galvanically separated from the KNX bus so that no ground loop can occur. The SK08-WAQ has an integrated KNX bus coupler and does not require additional voltage. The transducer with the bus coupler is enclosed in a durable, sealed, glass ball-reinforced plastic casing which fulfills protection degree IP65. Additionally two inputs for dry contacts are available.
Arcus-EDS offers a set of electrodes from the manufacturer Hanna; electrodes of all other makes and applications may also be used.
In the application software there are several controllers (two-position or PI controller with continuous or pulsed output) for measuring the pH value and redox potential. Additional functions include the display of upper and lower thresholds and switching between the set point and threshold.
The sensor records the time period from the last calibration and can be used as an alarm function should the threshold be exceeded. The sensor is calibrated via the KNX bus using two calibration functions. In general, the pH-value probe is set up as a two-position calibration and the redox potential as a one-position calibration.
The sensor is configured with ETS (KNX Tool Software) and the application program. Controlling functions such as signal threshold and other adjustments are parameterized using ETS (KNX Tool Software).
Der KNX-Sensor SK08-WAQ Wasserqualität ist ein Sensor / Regler aus der S8-Geräteserie für die Erfassung und Regelung der Wasserwerte ph-Wert und Redoxpotential sowie der Wassertemperatur.
Der Sensor / Regler besitzt zwei extrem hochohmige BNC-Eingänge für den Anschluss von Einstabmessketten für ph-Wert und Redoxpotential.
Die Eingänge sind vom KNX-Bus komplett galvanisch getrennt, so dass keine Erdschleifeneffekte auftreten können.
Zusätzlich stehen zwei potentialfreie Kontakteingänge zur Verfügung. Es können Elektroden verschiedener Hersteller für unterschiedliche Anwendungen eingesetzt werden.
Als Zubehör bietet Arcus-EDS einen Elektrodensatz der Firma Hanna an, der für allgemeine Anwendungen vorgesehen ist.
Das Gerät besitzt einen integrierten KNX-Busankoppler und benötigt keine Zusatzspannung.
Der Messwertwandler befindet sich in einem hochfesten, äußerst robusten schlagstabilen ABS Kunststoffgehäuse. Deckel und Unterteil verfügen über ein umlaufendes Nut- und Federsystem mit Neoprendichtung. Das Gehäuse hat die Schutzart IP65.
In der Applikationssoftware stehen verschiedene Regler ( Zweipunkt oder PI-Regler mit stetigen oder gepulsten Ausgängen ) für die Messwerte ph-Wert und Redoxpotential zur Verfügung.
Weitere Funktionen wie obere und untere Grenzwerte und jeweils ein Hilfsobjekt, welches auf die Soll- oder Grenzwerte geschaltet werden kann, sind enthalten. Im Sensor wird die Laufzeit seit der letzten Kalibrierung erfasst und kann bei Grenzüberschreitung als Alarmfunktion verwendet werden. Die Kalibrierung der Messsonden erfolgt über den KNX-Bus mittels zweier Kalibrierungsobjekte. Die Einstellung der ph-Wertsonde wird im Allgemeinen als 2-Punkt-Kalibrierung ausgeführt, das Redoxpotential als 1-Punkt-Kalibrierung.
Der Sensor wird mit der ETS ( EIB Tool Software ) und dem Applikationsprogramm projektiert. Die Regelfunktionen sowie Schaltschwellen und diverse Einstellparameter werden über die ETS parametriert.
